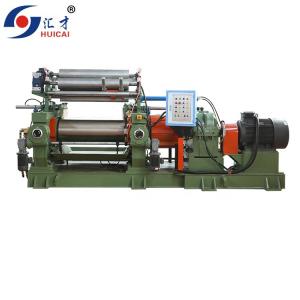

Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill

Diameter of Roll(mm) : 450 mm

Length of Roll(mm) : 1200 mm

Roll Ratio(Front/Back) : 1:1.27

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Bearing, Gearbox, Motor, Gear

Cooling Mode : Water

Condition : New

Place of Origin : Shandong, China

Brand Name : HUICAI

Voltage : 380 V

Dimension(L*W*H) : 5200x2000x1830 mm

Year : New

Warranty : 1 Year

Key Selling Points : Long Service Life

Power (kW) : 55

Weight (KG) : 11400 KG

Applicable Industries : Rubber

Showroom Location : None

Roll Diameter : 450 mm

Roll Working Length : 1200 mm

Front Roll Linear Speed : 21.8 m/min

Speed Ratio of Rolls : 1:1.27

Max Roll Space : 0.1-12

Compound Feeding Capacity : 50 kg

Motor Power : 55 kW

Overall Size : 5200x2000x1830 mm

Gross Weight : 11.4 ton

After-sales Service Provided : Engineers available to service machinery overseas

Packaging Details : Every machine is packed by new strong wooden case suitable for long distance, can be against moisture, dampaness, etc.

Supply Ability : 80 Set/Sets per Year open mixing mill

Price : $30,000.00/sets >=1 sets

MOQ : 1

Contact Now

Product Description

Uses:
This machine is mainly used with sealed rubber mixing machine, the mixing out of rubber pressed into tablets.
Structural characteristics:
1. Department of chilled alloy roll is made, in addition to the table an indication of drilling, the other for the hollow roller
cavity are processed.
2. In addition to the table marked as copper or nylon watts watts, the support of its addition are roller bearing, it can save energy, noise, long life.
3. With overload protection and emergency stop mechanism, to ensure the safety of persons andequipment.
4. In addition to XK-660 and the XK-660C is to open the others are closed rotating focus rotational.
Technical parameters
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Certifications
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Detailed Images
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
ROLLERS:
Two rollers are made from Chilled Cast Iron,smooth surface is highly polished and scratch proof by cutting knife; high hardness
and wear-resistant.
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill






MOTOR:
Motors are adopted with Chinese famous brand(KAI YUAN),quality guaranteed.
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill



FRAME AND BASE:
(1) Frame is made of casting iron through annealing treatment, steel welding structure is also available ;
(2) Base is integral welding structure, made of superior steel through annealing treatment.
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill








REDUCER:
Reducer adopts with precision hard gears secures high torque, low noise and extra long service life.
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill







BALL BEARING:
Bearings are adopted with Chinese famous brand(ZBZ),quality guaranteed.
All kinds of rubber mixing mill:
Lab rubber mixing mill,nylon type rubber mixing mill,copper bush mixing mill,bearing type mixing mill

Lab type-XK-160 rubber mixing mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
XK-400 rubber mixing mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
XK-450 rubber mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
XK-560 Rubber Mixing Mill with blender stock
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill

Our Service

Why choose our company?
Qingdao Huicai Machinery Manufacturing Co., Ltd. is an export-oriented enterprise based on Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, we have over ten years' history in manufacturing rubber machinery. We can provide all technical support, best after-sell service for all you require.
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
1) AAA grade credit enterprise and Ce and ISO 9001

2) With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.

3) Exported to more than 20 contries with good quality. Example: The good year company in Chile.

Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.

Why choose our rubber mixing mill machine?

1. Roller is made by special technology. There are normal roller and alloy roller for the customer to choose.
2. All of these adopt hardened gear reducer made of 35CrMo to reduce the speed. It has the advantages of low noisy, large
transmission power, wear-resistant and impact resistance.
3. Adopt quenching gear to drive and increase the life of the whole machine.
4. Adopt foreign technology to weld the steel pedestal which is non-deformation, non-fracture. It can avoid the expense caused by wrong operation.
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Packing & Delivery
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Customer visting and acceptance:
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill
Related Products
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill

Products Name with link

91.8% Response Rate
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill

Products Name with link

91.8% Response Rate
Professional 5200x2000x1830 mm Rubber Two Roll Open Mixing Mill

Products Name with link

91.8% Response Rate

FAQ

1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
4.Q:What's your payment term?
A:30% TT in advance, 70% TT before shipment Or L/C at sight.
5.Q:Can you design new product for us?
A:we have a professional development team that make new products according to your requirements.
